Description

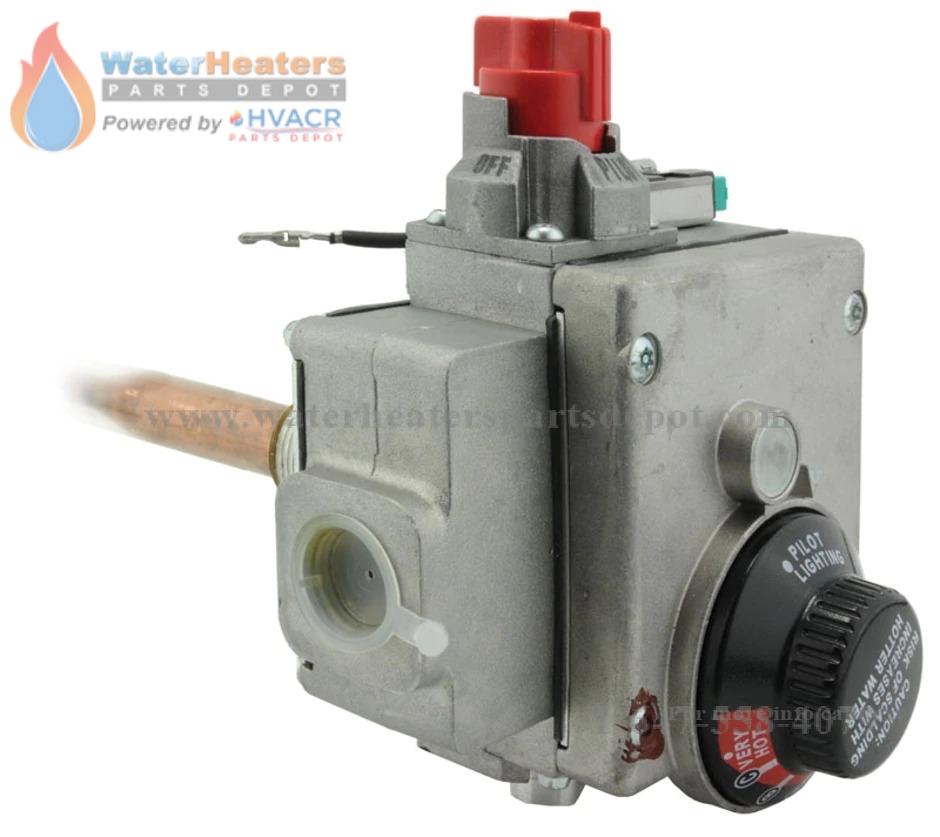

AP13160E-1 Rheem LP Gas Valve Direct Replacement is SP20167C
REPLACES ROBERTSHAW FACTORY MODEL 220RLPTSP. LP GAS WATER HEATER THERMOSTAT
Factory Model 220RLPTSP
Capacity 38K
Temp. Setting 160°
Inlet Size 1/2″ Pipe
Outlet Size 1/2″ inverted flare (left hand threads)
Shank Length 2-3/8″
Pressure Regulator Setting Preset @ 10.0 (adjustable from 9″ W.C. to 12″ W.C.)
Comments Replaces Bradford-White part no. 35927-04. No 3/8″ NPT reducer bushing is available with left-hand thread.
REPLACES:
ROBERTSHAW 7-244-202 Functional,
ROBERTSHAW 75-144-023 Exact,
ROBERTSHAW 75-144-035 Exact,
ROBERTSHAW 75-144-036 Exact,
ROBERTSHAW 75-144-36 Functional,
ROBERTSHAW 76-183-060 Functional
UNI-LINE 10653 Exact Uni-Line UPC number. Number may appear preceded by Uni-Line’s vendor i.d. number, 662013.ex. 66201312345,
UNI-LINE 64-644-304 Functional,
UNI-LINE 66201310653 Functional,
Series Application | 110 Domestic and Commercial L.P. Gas Water Heater, Water Heater Thermostat Uni-Kit |
Outlet Size | 1/2″ Inverted Flare (left hand threads) |
Comments | Replaces Bradford-White part no. 35927-04. No 3/8″ NPT reducer bushing is available with left-hand thread |
Pressure Regulation | 9” WC to 12” WC LP Gas |
Shank Length | 2-3/8″ |
Inlet Size | 1/2″ Pipe |
Flow Setting | 38,000 BTU |
Temperature | 160°F (71°C) |
Factory Part Number | 220RLPTSP |
110-262
110 Series Water Heating Gas Valves
The Robertshaw® 110 Series Water Heating Gas Valves are designed for universal replacement applications in water tanks. All models feature a built-in, non-cycling Energy Cut-Off (ECO) system to shut off all gas to the water heater in case of excessive water temperatures. The ECO is designed to detect over-temperature conditions and to open. Once opened, the control will not function and a new replacement will be required.
Features and Benefits
- Models include 5-1/2” sensing element
- Various inlet size, outlet size, regulator settings and shank lengths
- Right hand or left hand threads
- Multiple BTU capacities available
- Domestic, commercial and recreational vehicle applications
CROSS REFERENCE
Part # | Manufacturer |
1011-220 | UNI-LINE |
1011-223 | UNI-LINE |
110-201 | UNI-LINE |
110-261 | UNI-LINE |
110-301 | UNI-LINE |
110-336 | UNI-LINE |
110-337 | UNI-LINE |
110-339 | UNI-LINE |
110-380 | UNI-LINE |
21039 | UNKNOWN |
220rlptsp | ROBERTSHAW |
25-236-021 | ROBERTSHAW |
25-236-022 | ROBERTSHAW |
265-34792-03 | BRADFORD-WHITE |
3200500 | UNKNOWN |
32062 | UNKNOWN |
36057-01 | UNKNOWN |
3701 | WHITE-RODGERS |
3707-150 | WHITE-RODGERS |
3707-180 | WHITE-RODGERS |
3761 | WHITE-RODGERS |
3761U-121 | WHITE-RODGERS |
3772U-169 | WHITE-RODGERS |
37C724-169 | WHITE-RODGERS |
37C72U-169 | WHITE-RODGERS |
37C72U-650 | WHITE-RODGERS |
37C72U-714 | WHITE-RODGERS |
4-237-000 | ROBERTSHAW |
4-237-600 | ROBERTSHAW |
4-370-600 | ROBERTSHAW |
4-373-600 | ROBERTSHAW |
4-373-720 | ROBERTSHAW |
481009 | UNKNOWN |
61-506-027 | ROBERTSHAW |
61-506-032 | ROBERTSHAW |
61-507-032 | ROBERTSHAW |
61-536-032 | ROBERTSHAW |
61-537-032 | ROBERTSHAW |
61-537-208 | ROBERTSHAW |
64-638-304 | ROBERTSHAW |
64-644-304 | ROBERTSHAW |
64-644-381 | ROBERTSHAW |
64-667-345 | ROBERTSHAW |
64-667-346 | ROBERTSHAW |
64-668-345 | ROBERTSHAW |
64-677-345 | ROBERTSHAW |
64-677-346 | ROBERTSHAW |
64-678-304 | ROBERTSHAW |
64-678-359 | ROBERTSHAW |
64-680-346 | ROBERTSHAW |
64-684-304 | ROBERTSHAW |
64-684-345 | ROBERTSHAW |
64-684-346 | ROBERTSHAW |
64-686-347 | ROBERTSHAW |
64-6A7-345 | ROBERTSHAW |
64-6A7-346 | ROBERTSHAW |
64-6B4-345 | ROBERTSHAW |
64-738-278 | ROBERTSHAW |
64-741-366 | ROBERTSHAW |
64-764-356 | ROBERTSHAW |
64-794-360 | ROBERTSHAW |
64-FC4-304 | ROBERTSHAW |
64-FC8-304 | ROBERTSHAW |
64-FD4-381 | ROBERTSHAW |
64-FD8-304 | ROBERTSHAW |
64-FE0-279 | ROBERTSHAW |
65-744-222 | ROBERTSHAW |
65-784-222 | ROBERTSHAW |
65-GC4-222 | ROBERTSHAW |
65-GD4-222 | ROBERTSHAW |
65-MD0-379 | ROBERTSHAW |
66026 | UNI-LINE |
66027 | UNI-LINE |
66-306-230 | ROBERTSHAW |
66-307-237 | ROBERTSHAW |
66-334-309 | ROBERTSHAW |
66-336-204 | ROBERTSHAW |
66-336-230 | ROBERTSHAW |
66-336-245 | ROBERTSHAW |
66-337-205 | ROBERTSHAW |
66-337-237 | ROBERTSHAW |
66-337-292 | ROBERTSHAW |
66-337-309 | ROBERTSHAW |
66-338-201 | ROBERTSHAW |
66-338-214 | ROBERTSHAW |
66-338-278 | ROBERTSHAW |
66-338-333 | ROBERTSHAW |
66-339-258 | ROBERTSHAW |
66-339-292 | ROBERTSHAW |
66-344-258 | ROBERTSHAW |
66-344-309 | ROBERTSHAW |
66-CD4-258 | ROBERTSHAW |
66-CD6-204 | ROBERTSHAW |
66-CD7-205 | ROBERTSHAW |
66-CD9-258 | ROBERTSHAW |
67-436-404 | ROBERTSHAW |
6907125 | MOR-FLO INDUST. |
69-406-404 | ROBERTSHAW |
69-409-406 | ROBERTSHAW |
69-436-404 | ROBERTSHAW |
69-436-425 | ROBERTSHAW |
69-439-406A | ROBERTSHAW |
69-439-421 | ROBERTSHAW |
712-AP-7530-B | UNKNOWN |
72120 | MARS |
7-B36-200 | ROBERTSHAW |
7-B37-200 | ROBERTSHAW |
7-C37-200 | ROBERTSHAW |
80-037-023 | ROBERTSHAW |
80-037-035 | ROBERTSHAW |
80-037-036 | ROBERTSHAW |
80-137-036 | ROBERTSHAW |
84-FC4-D04 | ROBERTSHAW |
84-FC8-D04 | ROBERTSHAW |
84-FD4-D81 | ROBERTSHAW |
86-CD7-C05 | ROBERTSHAW |
AP09051B | RHEEM |
AP793C | RHEEM |
AP-8026-B | RHEEM |
AP8555E | RHEEM |
G10 | ITT/GENERAL CONTROL |
G11 | ITT/GENERAL CONTROL |
G5 | ITT/GENERAL CONTROL |
G52ASC06 | ITT/GENERAL CONTROL |
G6 | ITT/GENERAL CONTROL |
G8 | ITT/GENERAL CONTROL |
G9 | ITT/GENERAL CONTROL |
N45-069 | JOHNSTONE SUPPLY |
R110RLPTSP | UNKNOWN |
V5130R2053 | HONEYWELL |
V5130R2061 | HONEYWELL |
V5130R2087 | HONEYWELL |
V5130R2103 | HONEYWELL |
V5130R2137 | HONEYWELL |
V5130R2194 | HONEYWELL |
V5130R2202 | HONEYWELL |
V5130R2236 | HONEYWELL |
V5130R2392 | HONEYWELL |
V5130R2400 | HONEYWELL |
V5130S2017 | HONEYWELL |
V5130T2015 | HONEYWELL |
V5130T2023 | HONEYWELL |
V5130T2031 | HONEYWELL |
V5130T2056 | HONEYWELL |
V5130T2072 | HONEYWELL |
V5130T2080 | HONEYWELL |
V5130T2098 | HONEYWELL |
V5130T2106 | HONEYWELL |
W110-2134 | ROBERTSHAW |
